E45

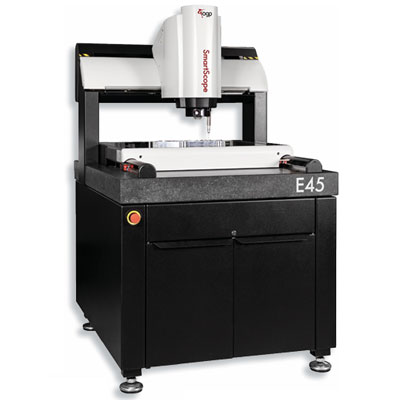

SmartScope®
E45
Large Capacity Video Measurement System
- 전자동(CNC) 프로그램 작동
- Bridge 구조
- IntelliCentric 광학 시스템
- 고정밀 줌 장착으로 오토 포커싱 가능
- 다양하고 강력한 조명
- 사용 편리한 기본 측정 소프트웨어
- 고해상도 디지털 카메라
- 측정 소프웨어의 Dual 모니터 영상분활 가능
- 검사 성적서 data report S/W(Excel 양식)
- Y축 610mm, Z축 300mm 지원
- Touch probe (Tp-20, 200)
- 회전 테이블
- 2/3차원 CAD 윤곽 분석 S/W
- 3차원 형상분석 S/W
Specifications
|
Standard |
Optional |
XYZ Travel |
500 x 450 x 200 mm |
Extended X-axis,610 mm; extended Z axis, 300 mm |
XYZ Scale Resolution |
0.1 ㎛ |
|
Drive System |
DC servo with 3-axis control (X,Y,Z); width 3-axis joystick controller | Multifunction handheld controller (in lieu of joystick) |
Worktable |
Nickel plated steel, with fixture holes, removable stage glass, 65kg recommended max payload |
|
Rotary Axis |
|
Miniature Servo Rotary (MSR™) |
Optice* |
Fixed optical magnification with digital zoom, E 8.10 standard lens | Replacement Lenses:e 16.20 Wide field-of-View/Long Working Distance, E 4.5 High Magnification |
lllumination |
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light | Conical SmartRing(included with E 4.5 lens) |
Metrology Camera |
6 megapixel color digital metrology camera |
|
Field of View |
7.0 mm x 5.1 mm to 1.7 mm x 1.3 mm |
E 16.20:14.0 mm x 10.4 mm to 3.4 mm x 2.6mm E 4.5:3.5 mm x 2.6 mm to 0.85 mm x 0.65 mm |
Resolution** | 10 ㎛ | E 16.20:20 ㎛ E 4.5: 5 ㎛ |
Working Distance |
62 mm |
E 16.20:110 ㎛ E 4.5: 31 ㎛ |
Sensor Options |
|
Tactile:TP20 or TP200 Touch Probe |
Software |
Measure-X measure and Compare |
Productivity software:Measure-X Analyze, EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC) Offline software:Measure-X |
System Controller |
Windows® based, with up-to-date processor and onboard networking/communiaction ports |
|
Controller Options |
|
24" flat panel LCD monitor, or dual 24" flat panel LCD monitors, keyboard, 3-button mouse(or user supplied) |
Power Requirements |
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 700 W |
|
Safe Operating Environment |
15-30 ℃, non-condensing |
|
Rated Environment |
Temperature 18-22 ℃, stable to ± 1 ℃, max rate of change 1 ℃/hour, max vertical gradient of 1 ℃ / meter; 30-80% humidity; vibration ＜0.001g below 15Hz |
|
