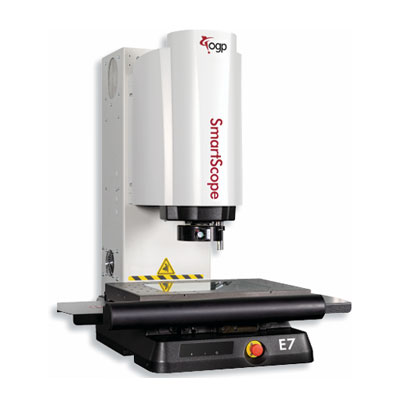

SmartScope®
E7
Fully Automatic Measurement System that Sets the
Standard for 3-A xis Video Measurement
- 전자동(CNC) 프로그램 작동
- Benchtop 구조
- IntelliCentric 광학 시스템
- 고정밀 줌 장착으로 오토 포커싱 가능
- 다양하고 강력한 조명
- 사용 편리한 기본 측정 소프트웨어
- 고해상도 디지털 카메라
- 측정 소프웨어의 Dual 모니터 영상분활 가능
- 검사 성적서 data report S/W(Excel 양식)
- X축 300mm 지원
- Touch probe (Tp-20, 200)
- 회전 테이블
- 2/3차원 CAD 윤곽 분석 S/W
- 3차원 형상분석 S/W
- 실시간 통계처리 및 Historical 분석 SPC S/W
Specifications
|
Standard |
Optional |
XYZ Travel |
250 x 150 x 200 mm |
Extended X-axis,300 mm |
XYZ Scale Resolution |
0.1 ㎛ |
|
Drive System |
DC servo with 3-axis control (X,Y,Z); width 3-axis joystick controller |
|
Worktable |
Hardcoat anodized, with fixture holes, removable stage glass, 25 kg recommended max payload |
|
Rotary Axis |
|
Miniature Servo Rotary (MSR™) |
Optice* |
Fixed optical magnification with digital zoom, 5 zoom positions, 1.0x lens | Replacement Lenses:2.0x |
lllumination |
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light |
|
Metrology Camera |
6 megapixel color digital metrology camera |
|
Field of View** |
7.0 mm x 5.2 mm to 1.7 mm x 1.3 mm |
3.5 mm x 2.5 mm to 0.85 mm x 0.65 mm (2.0x lens) |
Working Distance |
75 mm |
|
Sensor Options |
|
Tactile:TP20 or TP200 Touch Probe |
Software |
Measure-X measure and Compare |
Productivity software:Measure-X Analyze, SmartFit®3D, OGP® EVOLVE® Suite(Design, EVOLVE SPC, Manufacturing, SmartProfile®) Offline software:Measure-X |
System Controller |
Windows® based, with up-to-date processor and onboard networking/communiaction ports |
|
Controller Options |
|
24" flat panel LCD monitor, or dual 24" flat panel LCD monitors, keyboard, 3-button mouse(or user supplied) |
Power Requirements |
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 700 W |
|
Safe Operating Environment |
15-30 ℃, non-condensing |
|
Rated Environment |
temperature 18-22 ℃, stable to ± 1 ℃, max rate of change 1 ℃/hour, max vertical gradient of 1 ℃ / meter; 30-80% humidity; vibration ＜0.001g below 15Hz |
|
