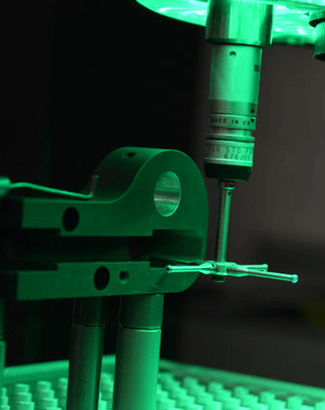

Touch Probes
- 다중 센서 추가
- 자동 구축
- 포인트 또는 표면 측정
- 소프트웨어 통합
- 통합 센서 보정
Specifications
Probe type | Touch Trigger Probe | Scanning Probe | ||||
Available | OGP® SmartScope® Quest, ZIP, Flash, ATS, and Apex Micro systems | OGP SmartScope Quest 300, 450, 650, 800; SmartScope Flash 302, 500, 670 | ||||
Compatible metrology software | QVI® ZONE3®, MeasureMind® 3D MultiSensor or Measure-X® | QVI ZONE3 or MeasureMind 3D MultiSensor | ||||
Supported touch probes | Renishaw® TP20, TP200 | SP25 Scanning Probe kits, TP20 (requires TM25-20 TTP module adaptor) | ||||
Programmable PH10 articulating probe kits (available on SmartScope Quest 450, 650, or 800 only) | PH10T with TP20, PH10M with TP200 (requires ZONE3 software) | PH10M with SP25 Scanning Probe (requires ZONE3 or MeasureMind 3D software) | ||||
Mounting | Probe sensor mounts on touch-probeready OGP measurement systems; detachable stylus module and stylus attach to probe sensor via magnetic self-aligning kinematic joint |
| ||||
Change rack(s) | 2-, 4-, or 6-position | |||||
| XYZ frame of reference | Freely interchange touch probe measurements and those taken by other sensors within the same measurement routine | |||||
| Calibration option | Calibration kit includes reference sphere, kinematic mounting base, and calibration software | |||||
| Other options | For complete functionality, the QVI Probe Controller (for TP20) or PI200 interface box (for TP200), a probe sensor, and at least one detachable stylus module (DSM) and stylus is required; for automated stylus changing, a multi-station change rack is required, as well as additional DSMs (one for each station), and additional styli. | |||||
