제품소개 SNAP 350

SNAP 350

SNAP 100

SNAP 200

SNAP 300

SNAP 350

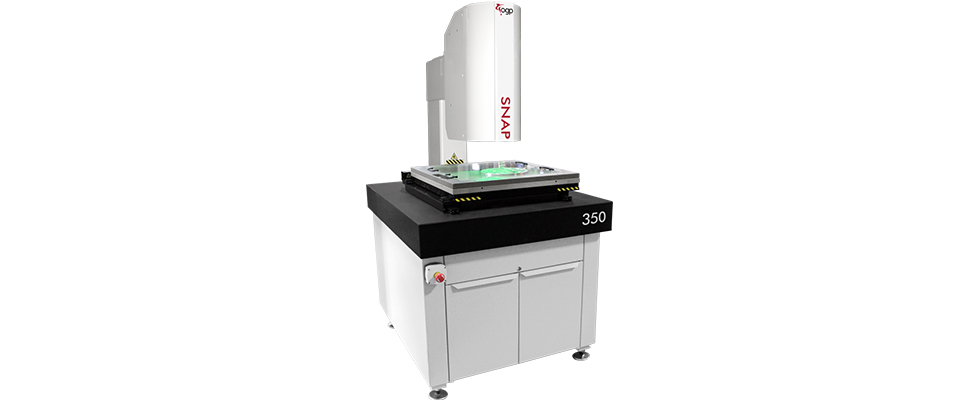

Desktop digital measuring machine
제품특징

• 양전자 중심 광학 장치를 통해 작업장 조건에서 정확한 부품 측정 가능

• AutoID는 시야에서 알려진 부분을 인식합니다.

• 시야에서 알 수 없는 부분을 자동으로 찾아 측정

• 독점 줌 Anywhere™ 기술을 통해 보기 영역 어디에서나 세부 정보를 측정할 수 있습니다.

• SNAP 350을 사용하면 부품 방향에 관계없이 고정 없이 빠르게 측정 가능








Specifications




 Standard

 Optional

 Measuring unit

 Rugged steel frame and column with granite surface plate

 Stage

 Precision motorized compound X,Y stage

 with DC servo drives

 Precision motorized Z-axis stage with DC servo drive

 Stage Motion Range

 X,Y: 380 x 360 mm Z: 75 mm (manual

 preset)

 X: 510 mm Z: 150 mm w/automatic focus (with optional dual

 magnification optics)

 Maximum measuring range (X,Y)

 405 x 405 mm

 450 x 450 mm (with optional Large Field Camera)
 565 x 405 mm (with optional extended X axis travel)
 610 x 450 mm (with optional Large Field Camera and extended X axis

 travel)

 Maximum Recommended Stage Load

 30 kg

 Optics

 Telecentric, single optical magnification

 Telecentric, dual optical magnification with 4X optical mid magnification
16X high magnification lens (dual magnification systems only)

 Metrology camera

 QVI High Density Megapixel Metrology

 Camera

 QVI Large Field Megapixel Metrology Camera

 Maximum field of view (diagonal)

 Single Mag / High Density Camera: 78 mm

 Single Mag / Large Field Camera: Low Mag 100 mm
 Dual Mag / High Density Camera: Low Mag 78 mm, High Mag 19.5 mm
 Dual Mag / Large Field Camera: Low Mag 100 mm, 4X Mag 24.5 mm,

 16X Mag 5mm

 Digital Zoom Range

 Single Mag / High Density Camera: 4:1 total

 zoom range

 Single Mag / Large Field Camera: 3:1 total zoom range
 Dual Mag / High Density Camera: 16:1 total zoom range
 Dual Mag / Large Field Camera: 12:1 total zoom range (4X high mag);

 (60:1 with 16X)

 Depth of field

 Single Mag / High Density Camera: 12 mm

 Single Mag / Large Field Camera: 50 mm
 Dual Mag / High Density Camera: Low Mag 20 mm, High Mag 5 mm
 Dual Mag / Large Field Camera: Low Mag 50 mm, High Mag (4X) 10 mm;

 (16X) 2mm

 Sensor Options



 Touch probe and change rack; DRSTM Laser (both require optional

 motorized Z axis)

 Illumination

 All LED, green substage profile light and   programmable 8-sector green ring light

 LED green coaxial surface light

 Deployable 8-sector green LED ring light with variable incidence angle

 Image Processing

 SNAP advanced image analysis, 256 level grayscale, with 10:1 - 50:1 sub-pixel resolution

 User Control Unit

 Multi-function hand controller with joystick and lighting controls

 System Controller
*Controller configuration subject to change

  without notice.

 QVI standard system controller with

 networking and communication ports*

 Single flat panel LCD monitor, or dual flat panel LCD

 monitors; keyboard, mouse

 Miscellaneous Options



 Barcode reader, USB digital I/O, fixture kit, peripheral support frame,

 calibration artifact

 Rated Environment

 Temperature 18-22° C, stable to ±1° C; 30-80% humidity; vibration <0.001g below 15 Hz

 Power

 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400W












Software


SNAP-X
