제품특징

• 양전자 중심 광학 장치를 통해 작업장 조건에서 정확한 부품 측정 가능

• AutoID는 시야에서 알려진 부분을 인식합니다.

• 시야에서 알 수 없는 부분을 자동으로 찾아 측정

• 독점 줌 Anywhere™ 기술을 통해 보기 영역 어디에서나 세부 정보를 측정할 수 있습니다.

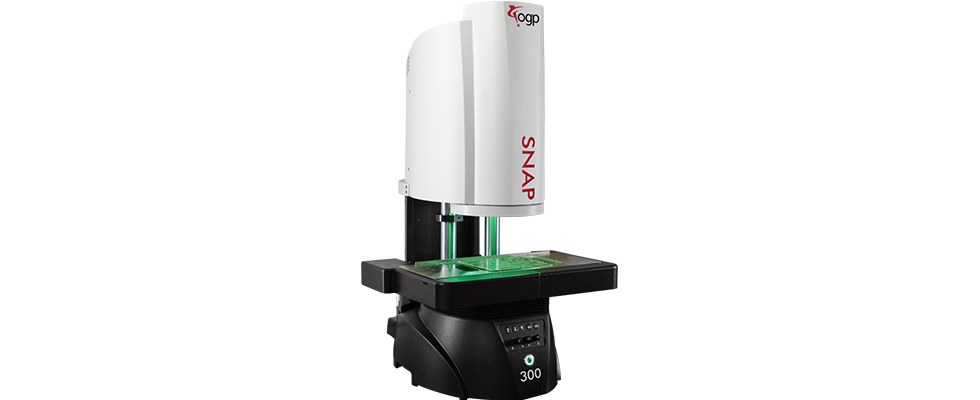

• SNAP 300을 사용하면 부품 방향에 관계없이 고정 없이 빠르게 측정 가능

 Standard

 Optional

 Measuring unit

 Rigid, cast aluminum base and nickel plated worktable; 4 kg load capacity, evenly distributed

 Stage

 Manual 150 mm X 50 mm Y,and 75 mm Z axis position adjustment and programmable focus

 SNAP Rotary indexer

 Maximum measuring range (X,Y)

 205 x 105 mm

 250 x 150 mm (with Large Field Camera)

 Optics

 Bi-telecentric, single optical magnification

 Bi-telecentric, dual optical magnification with 4X high magnification

 lens 9.6X ultra high mag lens in lieu of standard high mag lens for dual

 mag systems

 Illumination

 Monochromatic LED substage profile light, and  programmable 8 sector monochromatic ring light

 Metrology camera

 QVI High Density Megapixel Metrology Camera

 QVI Large Field Megapixel Metrology Camera

 Maximum field of view (diagonal)

 Single Mag / High Density Camera: 78 mm

 Single Mag / Large Field Camera: 100 mm

 Dual Mag / High Density Camera: Low: 78 mm High: 19.5 mm Ultra

 High: 8.1 mm

 Dual Mag / Large Field Camera: Low: 100 mm High: 45.0 mm Ultra

 High: 190 mm

 Depth of field

 Single Mag / High Density Camera: 20 mm

 Single Mag / Large Field Camera: 50 mm

 Dual Mag / High Density Camera: Low: 20 mm High: 5 mm Ultra High:

 1 mm

 Dual Mag / Large Field Camera: Low: 50 mm High: 10 mm Ultra High:

 2 mm

 Image processing

 SNAP advanced image analysis, 256 level grayscale, with 10:1 - 50:1 sub-pixel resolution

 GO button, illumination & magnification controls; Push button motion controls for motorized X, Y stage, and toggle

 switch for Z motion control

 System controller
 *Controller configuration subject to change

  without notice

 SNAP standard compact system controller with USB communication ports

 Single flat panel LCD monitor, or dual flat panel LCD monitors;

 keyboard, mouse

 Miscellaneous options

 Barcode reader, USB digital I/O capability, USB - Ethernet adapter, dust

 cover, fixture kit, peripheral support frame, calibration artifact

 Rated environmen

 Temperature 18 °C - 22 °C, stable to ±1 °C; 30-80% humidity; vibration <0.001g below 15 Hz

 Power

 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 160 W
