제품특징

• 양전자 중심 광학 장치를 통해 작업장 조건에서 정확한 부품 측정 가능

• AutoID는 시야에서 알려진 부분을 인식합니다.

• 시야에서 알 수 없는 부분을 자동으로 찾아 측정

• 독점 줌 Anywhere™ 기술을 통해 보기 영역 어디에서나 세부 정보를 측정할 수 있습니다.

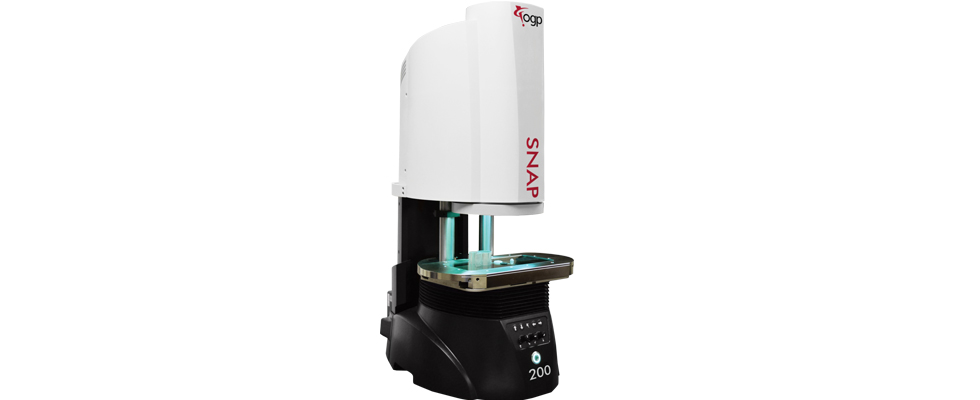

• SNAP 200을 사용하면 부품 방향에 관계없이 고정 없이 빠르게 측정 가능

 Standard

 Optional

 Measuring unit

 Rigid, cast aluminum base and nickel plated worktable; 4 kg load capacity, evenly distributed

 Stage

 Manual 150 mm X axis and 75 mm Z axis

 position adjustment

 Motorized programmable 150 mm X axis and 75 mm Z axis position

 adjustment with push button control
 SNAP Miniature Rotary (SMR) indexer

 Maximum measuring range (X,Y)

 205 x 55 mm

 250 x 100 mm (with Large Field Camera)

 Optics

 Bi-telecentric, single optical magnification

 Bi-telecentric, dual optical magnification with 4X high magnification

 lens

 Illumination

 Monochromatic LED substage profile light, and

 programmable 8 sector monochromatic ring

 light

 Metrology camera

 QVI High Density Megapixel Metrology Camera

 QVI Large Field Megapixel Metrology Camera

 Maximum field of view (diagonal)

 Single Mag / High Density Camera: 78 mm

 Single Mag / Large Field Camera: 100 mm
 Dual Mag / High Density Camera: Low: 78 mm High: 19.5 mm
 Dual Mag / Large Field Camera: Low: 100 mm High: 45.0 mm

 Depth of field

 Single Mag / High Density Camera: 20 mm

 Single Mag / Large Field Camera: 50 mm
 Dual Mag / High Density Camera: Low: 20 mm High: 5 mm
 Dual Mag / Large Field Camera: Low: 50 mm High: 10 mm

 Image processing

 SNAP advanced image analysis, 256 level grayscale, with 10:1 - 50:1 sub-pixel resolution

 GO button, illumination & magnification

 controls

 System controller
 _{*Controller configuration subject to change}

  _{without notice}

 SNAP standard compact system controller with USB communicaiton ports

 Single flat panel LCD monitor, or dual flat panel LCD monitors;

 keyboard, mouse

 Miscellaneous options

 Barcode reader, USB digital I/O capability, USB - Ethernet adapter,

 dust cover, fixture kit, peripheral support frame, calibration artifact

 Rated environmen

 Temperature 18 °C - 22 °C, stable to ±1 °C; 30-80% humidity; vibration <0.001g below 15 Hz

 Power

 100-120 VAC or 200-240 VAC 50/60 Hz 1 phase 160 W
