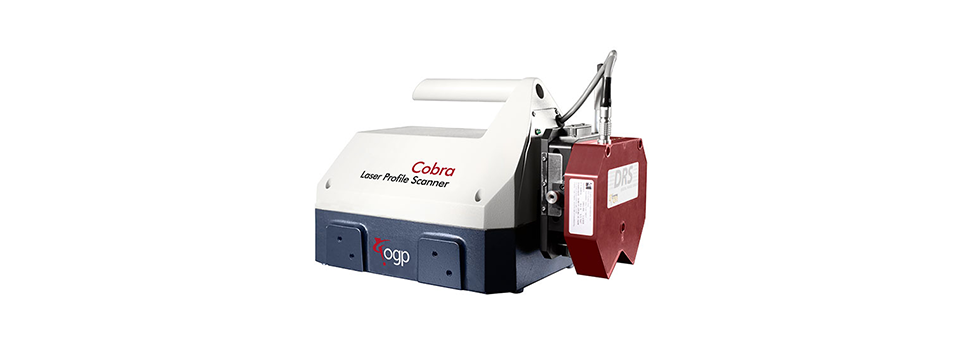

Scan length, Cobra 2D

 X-axis NA, Y-axis 50 mm

 Scan length, Cobra 3D

 X-axis 100 mm, Y-axis 50 mm

 Z-axis adjustment range Cobra 2D/3D

 50 mm

 Min X and/or Y step size

 1.0 µm

 Data range

 Up to 1000 points per second (user configured)

 Max points per scan

 20,000 (ser configred)

 Straightness of travel

 ± 1.0 µm within 25 mm

 DRS sensors (one included)
         Type of surface
         Capture range¹
         Z accuracy within capture range²
         Dynamic resolution
        Standoff distance³
        Triangulation angle
        Spot size (nominal)

 DRS-300
        Any
        300 µm
        1.0 µm
        0.125 µm
        17 mm
        70°
        7-12 µm

 Computer option

 Windows^®-compatible PC

 Standard metrology software

 Scan-X^®

 Optional software

 E-SPC, MeasureFit®, Scan-X offline

 Optional hardware

 Video camera, granite surface plate (standard on 3D model), manual positioning system, steel weldment base, calibration kit

 Rated environment

 Temperature 18-22° C, stable to ±1° C; 30-80% humidity; vibration <0.002g below 15 Hz

 Operating environment, safe operation

 15~30 ℃

 Power requirements

 115/230 vac, 50/60 Hz, 1 phase, 400 W

 Notes:

 ¹ Capture range is surface dependent.
 ² Accuracy on horizontal specular surface within the measuring range.
 ³ Standoff distance is the distance in Z from the lowest point on the DRS laser to the middle of the capture range.
 ⁴ DRS-500B blue laser is appropriate for any surface but works best on transparent or white parts

 비디오카메라 옵션

 측정용도

 실시간 이미지 측정용 비디오카메라

- 길이,각도,높이,지름
- 면적,중심찾기
- Roufhness
- Roundness
- 단면분석
