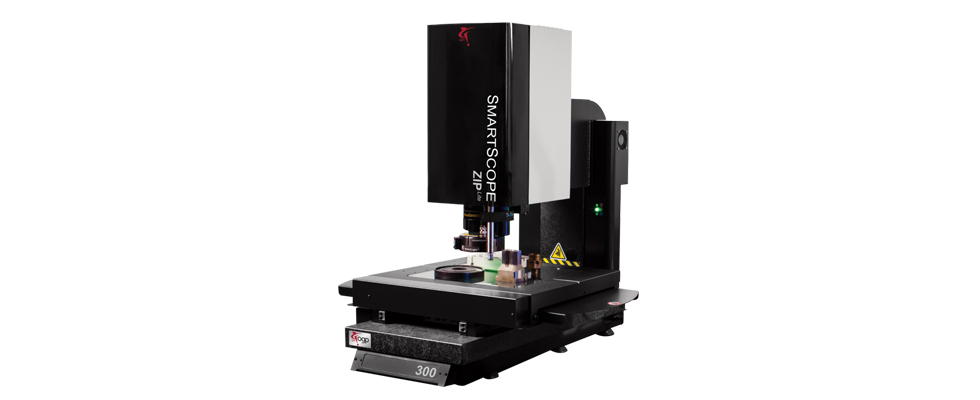

제품특징

- 정확한 비디오 도량형 - AcuCentric^® 모터 구동식 줌 렌즈가 각 줌 위치의 배율을 자동으로 보정합니다.
- 안정성과 정밀성- 무거운 주물 베이스와 Y축 중앙 드라이브가 내장된 복합 스테이지로 안정성을 제공합니다.
- 멀티센서 다기능성 - 터치 프로브, 레이저 및 마이크로프로브 옵션

 Standard

 Optional

 XYZ Travel

 300 x 300 x 150 mm

 XYZ Scale Resolution

 0.5 μm

 Drive System

 Stepper motors, X & Y; DC servo, Z & Zoom

 Worktable

 Hardcoat anodized, with fixture holes, removable stage glass, 25 kg recommended max payload

 Rotary Axis

 Miniature Servo Rotary (MSR), MicroTheta Rotary (MTR)

 Optics*

 AccuCentric^® auto-compensating zoom,

 motorized; 1.0x lens; 1.0x adapter tube

 Replacement Lenses: 2.0x
 Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x
 Factory Installed Adapter Tubes: 0.67x, 2.0x

 FOV Range

 6.6 mm x 5.0 mm (low zoom) to
 1.2 mm x 0.9 mm (high zoom)

 15.0 mm x 11.3 mm (0.67x tube, 1.0x lens, 0.5x attachment) to

 0.33 mm x 0.25 mm (2.0x tube, 2.0x lens)

 Working Distance

 63 mm

 Up to 85 mm (10x lens 05x attachment)

 Camera

 Color digital metrology camera

 Image Processing

 256 level grayscale processing with 10:1 subpixel resolution

 Sensor Options

 Tactile: TP 20 or TP200 Touch Probe
 Non-Contact: DRS™ Laser

 Controller

 Windows^® based, with up-to-date processor and on board networking/communication ports

 Controller Accessory Package

 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors,

 keyboard, 3-button mouse (or user supplied)

 Software

• Choice of ZONE3 Express or Measure-X
     or MeasureMind 3D metrology software
• QVI Portal

 Metrology software: ZONE3 Prime, ZONE3 Pro
 Productivity software: MeasureFit® Plus, SmartFit® 3D,

 SmartProfile®, E-SPC
 Offline software: ZONE3, MeasureMind 3D, Measure-X

 Power Requirements

 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 500 W

 Operating Environment,

 Safe Operation

 Temperature 18-22 C, stable to ±1 C, max rate of change 1 C / hour, max vertical gradient of 1 C / meter; 30-80%

 humidity; vibration <0.001g below 15 Hz
