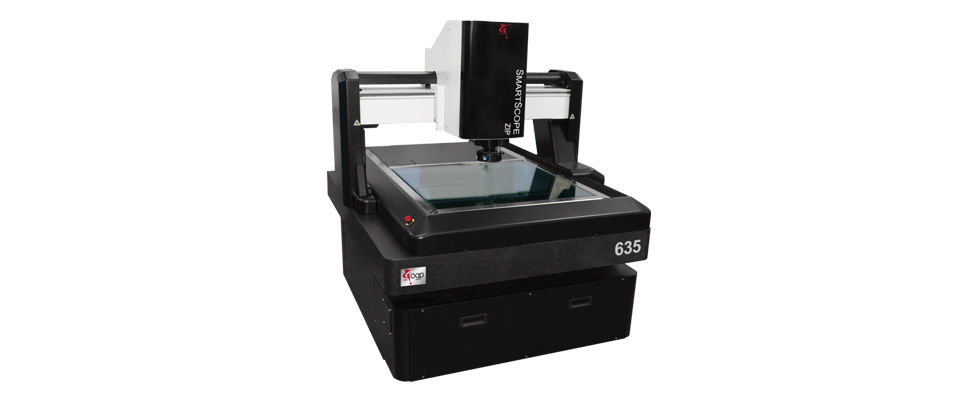

 제품특징- 내장 측정 안정성 – 화강암 베이스 및 탄소 섬유 브리지는 측정 안정성을 위한 견고한 직교 단계를 제공합니다. - 고속으로 생산성 향상 – 세 가지 측정 축 모두에서 고속 가속 및 속도 향상 - 높은 신뢰성 전송 – 견고한 드라이브 시스템은 장기적인 신뢰성에 기여합니다. - 다중 센서 다기능성 – 비접촉 센서 및 터치 프로브 옵션 |
Specifications
| Standard | Optional | |||
X, Y, Z Travel | 635 x 635 x 200 mm | ||||
X, Y, Z Scale Resolution | 0.1 µm | ||||
Drive System | DC servo with 4-axis control (X,Y,Z,zoom); with multifunction handheld controller (for MeasureMind® 3D) or joystick (for Measure-X®) | ||||
Transport velocity/acceleration | Velocity: X,Y = 500 mm/sec, Z = 100 mm/sec; Acceleration: X,Y = 1000 mm/sec2, Z = 300 mm/sec2 | ||||
Worktable | Fixed, nickel plated steel, with fixture holes, removable stage glass, 50 kg recommended max payload | ||||
Optics | 5:1 AccuCentric® auto-calibrating zoom, motorized; 1.0x front replacement lens; 1.0x adapter tube; 2.0x lens attachment | 0.5x, 0.75x, 1.5x lens attachments; 1.0x LWD (not for use with SmartRing™ light), 2.5x, 5.0x, 10.0x front replacement lenses; autofocus LED grid projector; laser adapter (includes laser pointer) | |||
FOV size (std optical configuration) | Measured diagonally, 5.0 mm (low mag) to 0.9 mm (high mag) | ||||
Illumination | Substage LED profile (green), coaxial LED surface (white), patented SmartRing LED ring light (white) | VuLight™ oblique illuminator, small fiber optic ring light, fiber optic surface light, large fiber optic ring light | |||
Camera | High resolution, color | High resolution, black & white digital metrology camera | |||
Image Processing | 256 level grayscale processing with 10:1 subpixel resolution | ||||
Sensor Options** (contact OGP for possible combinations of sensors) |
| Touch probe and change rack, off-axis DRS™ laser, on-axis TTL laser, Rainbow Probe™ scanning white light sensor, Feather Probe™ | |||
Controller | Windows® based, with up-to date processor and on board networking/communication ports | ||||
Controller Accessory Package |
| 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) | |||
Metrology Software | MeasureMind® 3D MultiSensor | Measure-X®, MeasureMind 3D Offline | |||
Productivity Software |
| MeasureFit® Plus, SmartReport® powered by QC-Calc, SmartFit® 3D, SmartProfile®, Scan-X®, TrueMap™, SmartScript®, SmartTree™ | |||
Power Requirements | 115/230 VAC , 50/60 Hz, 1 phase, 1000W | ||||
Operating Environmnet, Safe Operation | Temperature 15-30 °C, | ||||
Rated Environment | Temperature 18-22 °C, stable to ±1 °C; 30-80% humidity; vibration <0.001g below 15 Hz | ||||
